Electron Beam Sterilization (E-Beam)
Electron beam (e-beam) sterilization is one of the safest and most efficient methods available for sterilizing medical devices, food products, and other materials. Although the core technology has existed since the early 1900s, industrial advancements in the 1980s and 1990s propelled e-beam sterilization to become a preferred alternative to traditional methods like gamma irradiation and ethylene oxide (EtO) sterilization.
Unlike other methods, e-beam sterilization offers several advantages:
- Avoids volatile and toxic chemicals during operation.
- May not require strict temperature and moisture controls, depending on the material.
- Products are ready for use immediately after processing.
Due to these benefits, e-beam sterilization is competitive with gamma sterilization using cobalt-60 (60Co) and EtO fumigation, making it a widely adopted industrial solution.
How Does E-Beam Sterilization Work?
E-beams are produced by particle accelerators, which speed up charged particles such as electrons, protons, or atomic nuclei. In e-beam sterilization, electrons are the primary particles used. These electrons are typically generated from a heated tungsten filament (a cathode), where voltage is applied to emit electrons via thermal emission. The electrons are then accelerated toward an anode, guided by electromagnets that steer and focus the beam.
Depending on the voltage type, particle accelerators operate in different modes:
- DC Accelerators: Provide a constant beam with high average beam power.
- RF Accelerators: Use a pulse or continuous wave type for acceleration, resulting in lower average beam power.
- Microwave Accelerators: Deliver pulsed beams at a low repetition rate.
In industrial applications, a linear accelerator (linac) is commonly used. Linacs manipulate electrons to travel in a straight line toward a fixed target, ensuring precision and efficiency.
The E-Beam Sterilization Process

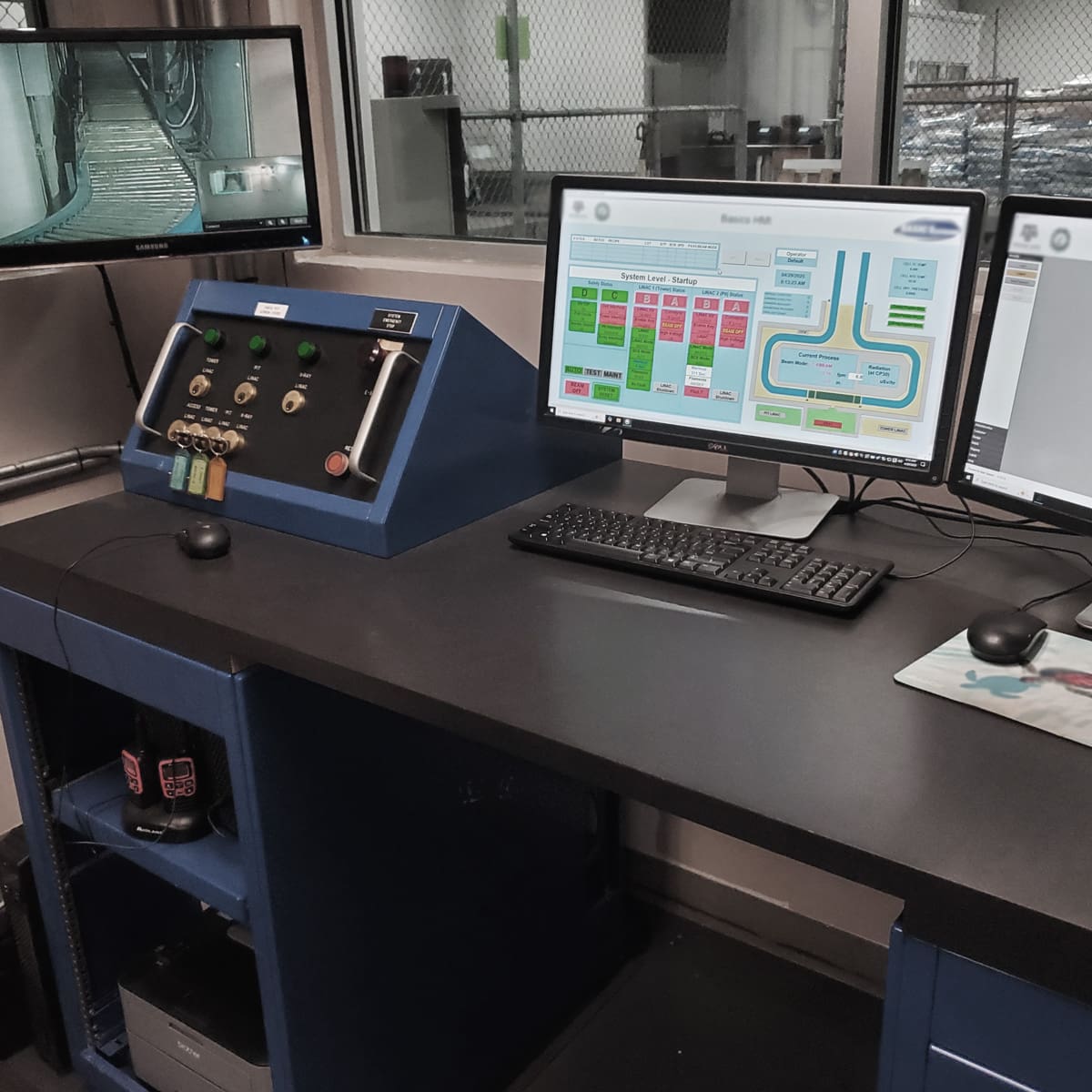

In modern e-beam sterilization, products are typically exposed to a linac e-beam positioned above a conveyor system. The conveyor speed is carefully calibrated to ensure the product receives the appropriate irradiation dose. Key factors influencing the dose include:
Product Thickness and Density: Denser and thicker products require higher doses.
Electron Beam Energy: Measured in mega-electron volts (MeV), the energy affects penetration depth and uniformity.
Industrial e-beam accelerators operate within the range of 3 to 10 MeV, with 10 MeV being the most common energy for sterilization. This energy level ensures:
Optimal penetration depth (5 mm to 25 cm in unit density materials).
Uniform dose distribution.
How E-Beam Kills Microorganisms
E-beam sterilization kills microorganisms by damaging DNA and other cellular structures.
The process works by:
- Creating free radicals that induce molecular changes in the DNA, splitting the backbone and rendering microorganisms unable to reproduce.
- Ensuring safety by keeping the energy level below 10 MeV to prevent induced radioactivity within the sterilized product.
The process is highly effective for reducing bioburden, ensuring that products meet stringent sterility requirements.
Since all microorganisms have DNA, the process is effective against a wide variety of microorganisms, including endospore-forming bacteria, fungi, viruses, and bacteria.
How does Microchem Laboratory Support E-beam Sterilization?
Microchem Laboratory performs bioburden testing to support dose analysis for E-beam sterilization. We can support both the initial validation (bioburden testing and sterility testing) as well as routine dose monitoring. Microchem Laboratory is your trusted partner in ensuring safety and compliance. Contact us today for free consultation or a quote.
